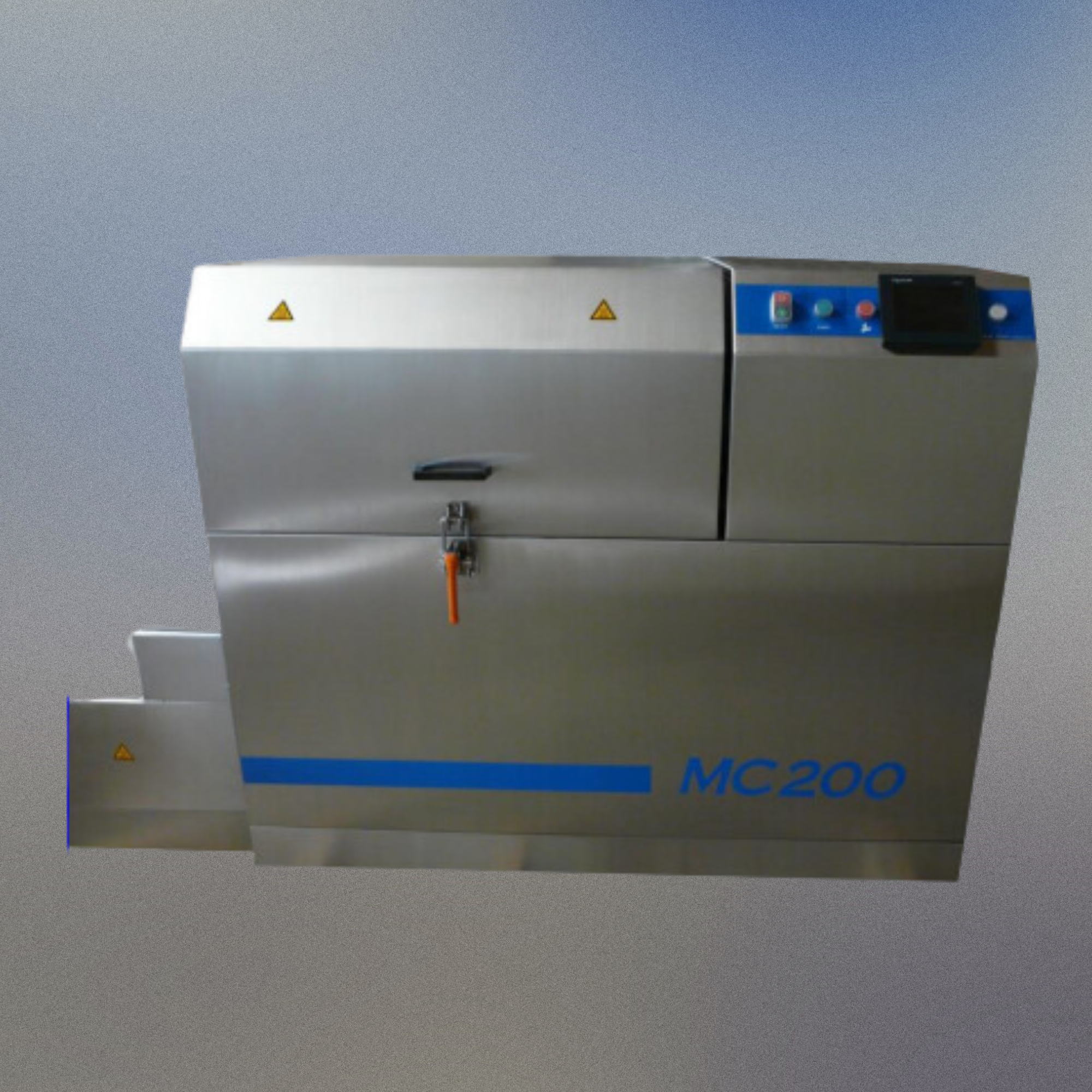

Maintenance Application MC200
MC200
FEATURES
Ergonomic loading and unloading,
High flow spray arm with nozzles on 3 directions to avoid shadow effect,
Water based cleaning process in close loop,
Rinsing in open or close loop,
Superior hot air drying,
Optional air knife between each step,
Optional filtration to extend wash solution life time
Full stainless-steel construction with containment tray.
SPECIFICATIONS
-
6.3 x 3.3 x 4.3 ft / 1.9 x 1 x 1.3 m
-
660 lb / 300 kg
-
480V, 3 phases 60Hz 16A ± 5%
-
90 PSI, 7 CFM max / 6 bars, 200 L/min max
-
70 PSI max, 6 GPM max / 5bars, 20L/min max
-
100 CFM, 3” connection on the top of the machine
-
Cleaning agent volume: 27 gal / 100 L
Pump: 1 Centrifugal pump, 50 GPM / 200 L/min
Filters: Stainless steel particles filters (200 μm filtration in option)
Cleaning time (depends on residues): 10 minutes average (steps adjustable from 1 to 60minutes)
-
Size (diameter x height): 30” x 23” / 760x600 mm
Maximum load: 440 lb / 200 kg
*Specifications and appearance are subject to change without prior notice.
